* This series only sales in specific region

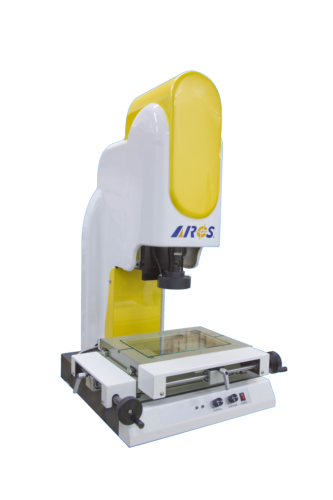

Technology Features of KIM-CU Series

Video system: High Resolution & High Accuracy CCD

Magnification: 0.7x~4.5x (17.5x~112.5x)Zoom lens (Optional 0.5x lens)

Illumination: Adjustable surface and contour illumination (High Brightness Ring Illumination)

Linear scale: 0.0005mm on X, Y, Z-axis

Length accuracy: ± (3+L/150) μm on X,Y-axis

Repeatability: 0.003mm on X, Y-axis

Connection: USB Output + Metrology software

Sighting device: Cross-hair generator

Base: Precision granite table

Power supply :AC110/220V, 50/60Hz

Optional software: SI-101,SI-102
