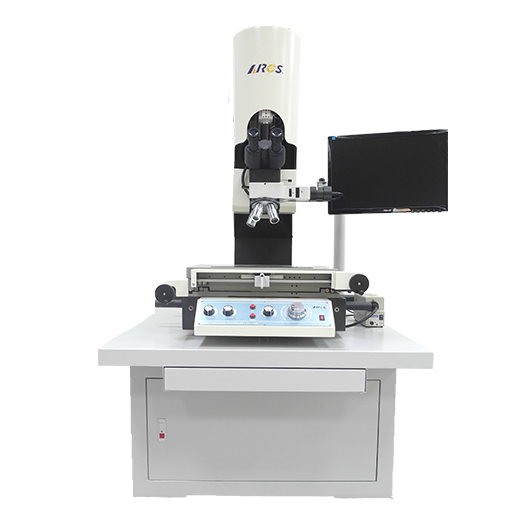

KOM series Manual OM Video Measuring System

-Using high-precision granite base, with high strength, stability and corrosion resistance

-Special aluminum workbench with post-painting treatment, high precision and good stability
 -The system is designed with a new C-shaped granite structure to reduce Abbe error and greatly improve the measurement accuracy
 -Standard ARCS metallographic turrets, Nikon or Olympus metallographic turrets are also available for option

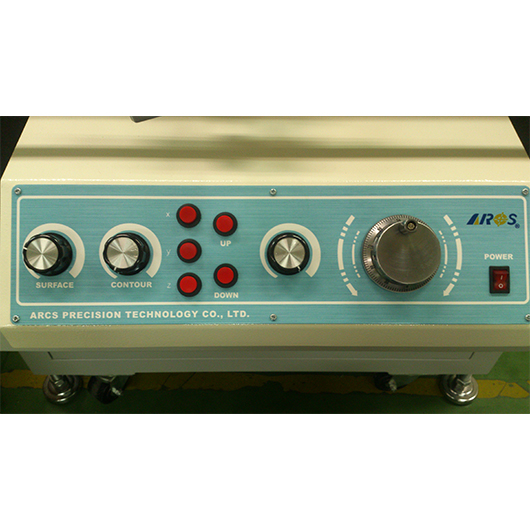

 -Z-axis wide-band speed-regulated feed, controlled by "shift button + up/down button"
 -Z-axis sub-micron (0.5 μm) feed with MPG forward/reverse control
 -High resolution color CCD chip with high resolution, high sensitivity and high definition
 -The object lens group can be matched with bright and dark fields or long and short working distance lens groups according to different needs
 -Long working distance object lens group (2X, 50X are optional)
    Magnification 5X working distance 45 mm
    Magnification 10X working distance 34 mm
    Magnification 20X working distance 30.8 mm
 -Using ARCS precision optical ruler with a resolution of 0.5 μm
 -Linear accuracy X, Y axis (3+L/200) μm
 -Repeat accuracy 0.003 mm
 -Bottom light and full spectrum coaxial light
 -Power supply 1~, AC200V ~ 230V, 50/60 Hz
 -With SI-102 professional 2.5D image measurement software, the interface is friendly, easy to learn and easy to operate
 -All series are equipped with standard work table (length x width x height) 1000 x 1000 x 672 (mm)


Applications

 -Material analysis and identification (fiber, ceramics, powder, metallurgy, chemical industry)
 -High magnification inspection of process appearance (evaporation, yellow light, etching, alloy)
 -Mechanical precision molds, stamping hardware, cutting tools
 -Wafer semiconductor metal industry and electronic components
 -Medical related (teaching, institutions and scientific research units)
