* This series ONLY sales in specific regions

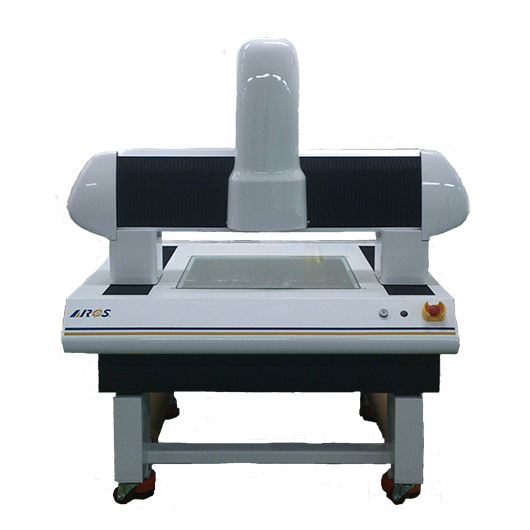

Product Features of CAM CNC Video Measuring System

Using high-precision granite base, with high strength, corrosion resistance and stability

The X and Y axes use linear slide rails, and the Z axis uses Japanese original NB cross rail + ball screw
X, Y, Z axes are controlled by servo motor
High resolution color CCD chip with high resolution, high sensitivity and high definition
Magnification 0.7X~4.5X (17.5X~112.5X) stepless zoom lens
Optional objective lens 0.5X, 2X, 5X, 10X
LED bottom light source and 24 zone multi-section surface light source
Power supply 1~, AC200V ~230V, 50/60 Hz
Using ARCS precision optical scale with a resolution of 0.5 μm
   Linear accuracy X, Y axis CAM-3020 (3+L/200) μm
   Linear accuracy X, Y axis CAM-6272 (3.5+L/100) μm
Repeatability 0.003 mm
With VI-901 professional 2.5D image measurement software, the interface is friendly, easy to learn and easy to use
Automatic search function with super strong coordinate position offset
Visual programming, can be programmed according to the imported DXF file, suitable for batch testing
Graphical SPC report output function can easily output test results


Note The above specifications are based on the actual machine shipped from the factory, and are subject to change without notice
